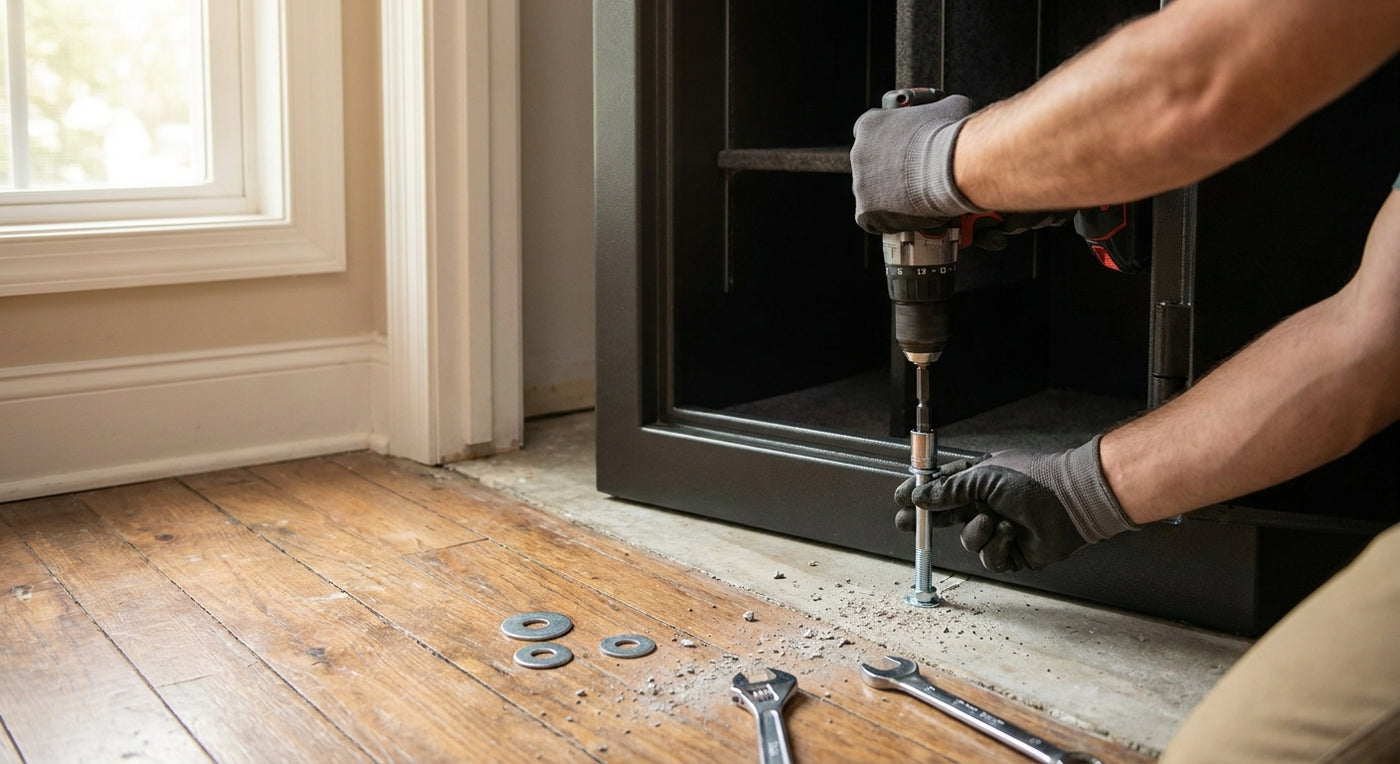

How to Bolt Down a Home Safe in 2026 | Step-by-Step

Learn how to bolt down a safe on concrete or timber floors in 2026. Step-by-step anchoring guide with correct bolt sizes, drill types, and torque specs.

July 08, 2026

Bolting down a home safe is the single most effective upgrade you can make after buying one — an unanchored safe, no matter how heavy, can be carried out of your house in under two minutes. This guide walks you through exactly how to bolt down a safe on timber floors, concrete slabs, and inside cupboards, so the safe you paid for actually does its job.

TL;DR: Knowing how to bolt down a safe is non-negotiable in 2026. An unbolted safe is a portable box — burglars pry small safes loose in under 90 seconds. You need a hammer drill, the right anchor bolt for your floor type (M10 sleeve anchor for concrete, 10 mm coach bolt for timber), and the four pre-drilled holes already in the base of almost every quality home safe. Total job time: 45–90 minutes. Do it once, do it right.

Why anchoring matters more than the safe's weight

A 30 kg home safe sounds substantial until you picture two people with a dolly. Australian burglaries are opportunistic — most offenders are in and out in under 10 minutes. A safe that is not fixed to the structure of your home is simply a delayed inconvenience. Bolting the unit to a concrete slab or timber subfloor means a thief now has to defeat the safe in place, which defeats the entire smash-and-grab model.

In 2026, Australian police data continues to show that the majority of residential safe thefts involve unsecured units removed whole from the property. Bolting costs you less than $30 in hardware and one afternoon. It's the cheapest upgrade in home security.

What you'll need

Gather everything before you start — stopping mid-job to find a bit or a bolt costs time and leaves your safe unmovable in the wrong spot.

Tools:

Hammer drill (not a standard drill — you need the percussion action for masonry)
10 mm or 12 mm masonry drill bit (for concrete)
10 mm wood drill bit (for timber floors)
Ratchet or socket set (typically 17 mm)
Spirit level
Tape measure and pencil
Vacuum or compressed air to clear drill dust
Safety glasses and ear protection

Hardware — choose by floor type:

Concrete slab: M10 sleeve anchors or M10 wedge anchors, minimum 75 mm embedment depth (sold in packs at any hardware store)
Timber subfloor: M10 coach bolts, 100 mm length, with large washers and nuts on the underside
Tile over concrete: Tile drill bit to score the surface first, then switch to masonry bit

From the safe itself:

The safe's own anchor bolts (included with most models — check the box)
The installation template or measurement sheet if your safe shipped with one

Time required: 45 minutes on a clean concrete slab; up to 90 minutes if you're working through tile or accessing the underside of a suspended timber floor.

If you're choosing a safe to anchor, the Secuguard SHS2K home safe and the Guardall HV1 home safe both ship with pre-drilled anchor holes and hardware included — which cuts your prep time significantly.

The steps

Step 1: Choose the final location before you drill anything

Decide where the safe lives permanently — because once those anchors are set into concrete, moving it means patching holes. The best locations in 2026 are: master bedroom wardrobe floor (hidden, but accessible), under a staircase (low-visibility), or a dedicated utility cupboard on the ground floor. Avoid garages; they're the first place burglars search and humidity accelerates corrosion on locking mechanisms.

Use a spirit level to confirm the floor is flat. A 2–3 mm slope is fine; anything beyond that and the door may not swing cleanly after anchoring. Common mistake: positioning the safe before checking door clearance. Open the door fully in its proposed location and measure the swing arc — you need at least 90° of opening to use the interior properly.

Step 2: Mark the anchor hole positions

Slide the safe into its final position. Reach inside and use a pencil or marker through each pre-drilled anchor hole in the base to mark the floor directly beneath. Most home safes have 4 anchor points — mark all of them even if you plan to use only 2. Expected outcome: four clear marks on the floor that correspond exactly to the safe's footprint.

If your safe has a paper template in the box, tape it down first and mark through the template — faster and more accurate than marking through the safe itself, especially if the hole positions are awkward to reach.

Common mistake: marking with the safe already tipped or shifted sideways. The safe must be sitting in its exact final position, dead flat, when you mark.

Step 3: Drill the anchor holes

For concrete: Fit your hammer drill with the 10 mm masonry bit. Drill straight down at each mark to a depth of at least 90 mm (the anchor sleeve needs 75 mm embedment plus clearance). Keep the drill perpendicular — an angled hole produces a weak, canted anchor. Clear dust from each hole with a vacuum or air blast before inserting anchors. Dust-packed holes cause sleeve anchors to fail under load.

For timber: Use the 10 mm wood bit and drill straight through the subfloor boards. Access from below (via a crawl space or open ceiling) to fit a large washer and nut on the coach bolt underneath. If there's no underfloor access, use a threaded insert rated for shear loads.

Common mistake: drilling too shallow. A sleeve anchor set only 50 mm deep in concrete can be levered out. Go to 90 mm minimum.

Step 4: Set the anchors

Concrete sleeve anchors: Drop one anchor into each hole. Use a hammer to tap the setting tool until the sleeve expands against the concrete walls — you'll feel resistance increase as the cone pulls the sleeve outward. Do not over-strike; you're expanding, not driving deeper. Expected outcome: the anchor sits flush or just proud of the floor surface, with zero wobble.

Timber coach bolts: Push each bolt down through the safe base and subfloor, then fit washer and nut from below. Hand-tighten first to confirm alignment, then torque to 25–30 Nm. Do not over-torque on softwood — you'll compress the timber and reduce shear resistance.

Step 5: Position the safe over the anchors and bolt down

Lift the safe and align its base holes over the anchor bolts. Lower it carefully — the fit should be snug enough that the safe doesn't slide sideways. Thread the nuts by hand first across all 4 bolts to confirm alignment, then use the socket wrench to tighten in a cross pattern (front-left, rear-right, front-right, rear-left). This cross-pattern prevents the safe from racking and keeps all four corners in even contact with the floor.

Torque each nut to the manufacturer's specification — typically 40–50 Nm for M10 anchors in concrete. If no spec is listed, 45 Nm is a safe working figure for M10 sleeve anchors in 25 MPa concrete.

Common mistake: tightening all the way down on one bolt before touching the others. This tips the safe, creates gap on the opposite corner, and puts uneven stress on the anchor.

Step 6: Test the installation

Attempt to rock the safe front-to-back and side-to-side with both hands using firm, deliberate force. There should be zero movement. Open and close the door — it should operate smoothly with no binding at the frame. If the door drags, re-check that all four bolts are torqued evenly; an uneven installation can introduce a 1–2 mm twist into the body.

Expected outcome: a safe that feels like it has been poured into the floor. If you can rock it at all, the anchors have not set correctly. In concrete, this usually means the hole was too shallow or too dusty — remove the safe, re-drill deeper, blow out the dust, and reset.

Troubleshooting

The drill bit isn't cutting into the concrete. You're using a standard drill, not a hammer drill, or the percussion is switched off. Concrete requires the hammering action — rotary cutting alone won't get through aggregate. Hire a SDS hammer drill if yours doesn't have a percussion mode.

The sleeve anchor spins in the hole instead of expanding. The hole is too wide. This happens when the bit wanders or you used the wrong size. Fill the hole with high-strength epoxy anchor adhesive, let it cure 24 hours, then re-insert and set.

The safe door binds after anchoring. The installation is not level — one corner is sitting fractionally higher than the others. Back off the highest corner's nut by a quarter turn, re-check with a spirit level, and re-torque.

Tiles cracked during drilling. You went straight in with a masonry bit. On tiles, start with a tile/glass drill bit at low speed with no hammer to score through the glaze (about 5 mm), then switch to the masonry bit with hammer action to continue into the substrate.

There's no underfloor access for the timber bolt method. Use M10 structural screws (not wood screws — structural) rated for shear loading, minimum 100 mm long, driven at a slight angle into the joist below if possible. Four structural screws into solid timber provide strong resistance against vertical lift.

The safe came with only 2 anchor bolts but has 4 holes. Use all 4 holes. Source matching M10 anchor hardware from any hardware store — don't leave 2 holes unused. Four anchor points distribute the load and dramatically increase resistance to lateral force.

Tools and resources

SDS or hammer drill — hire from most major hardware stores in Australia for around $40–$60/day in 2026
M10 sleeve anchors — sold in packs of 4 or 10; confirm the minimum embedment depth on the packaging
Torque wrench — not strictly required but eliminates guesswork on final tightening
Spirit level — 600 mm or longer for reliable readings across the safe base
Security Safes stocks a range of home safes pre-drilled for anchoring, including the Secuguard SHS3K home safe and the Secuguard SHS4E home safe — both designed for residential floor installation
For in-floor installation as a more permanent alternative, see the guide on in-floor safes for residential security

What to do next

Once the safe is bolted down, the next layer of protection is fire resistance — a bolted-but-unrated safe can lose its contents to a house fire in under 30 minutes. Read the best fireproof safes for Australian homes in 2026 to understand what fire ratings actually mean and which products are worth the premium.

FAQ

Do I have to bolt down a home safe? Legally, no — but practically, yes. An unanchored safe under 200 kg can be removed from a home by two people in a matter of minutes. Bolting takes under 90 minutes and eliminates the most common attack: theft of the entire unit.

Can I bolt a safe to a timber floor? Yes. Use M10 coach bolts with large washers and nuts on the underside of the subfloor. If you have no underfloor access, use structural screws rated for shear loads — not standard wood screws, which are rated only for pull-out.

What size bolts do I need to bolt down a safe? M10 is the standard for residential home safes in Australia in 2026. For concrete, use sleeve anchors or wedge anchors with at least 75 mm embedment. For timber, use 100 mm coach bolts or equivalent structural fasteners.

How many anchor points should I use? All of them. Most home safes ship with 4 pre-drilled anchor holes — use all 4. Four points resist lateral and rotational force far better than 2, which can still allow the safe to pivot.

Can I bolt a safe into a tiled floor? Yes, but score through the tile glaze with a tile drill bit first before switching to a hammer drill and masonry bit. Going straight in with a masonry bit on percussion will crack the tile.

Does a heavier safe mean I don't need to bolt it down? No. Weight slows a thief down but does not stop them. A 150 kg safe on a trolley with two people is gone in minutes. Bolting makes removal essentially impossible without power tools and significant noise and time.

Is bolting the safe myself safe, or should I get a professional? For most concrete slab or timber subfloor installations, a competent DIYer with a hammer drill can do this correctly in under 90 minutes. If you're drilling into a post-tension concrete slab (common in some apartment buildings), hire a professional — cutting a post-tension cable is a structural emergency.

What's the torque for M10 anchor bolts in concrete? 40–50 Nm is the standard working range for M10 sleeve anchors in normal-weight concrete. Check your anchor manufacturer's spec sheet — some high-load anchors call for 60 Nm.

One last thing

Burglars case properties before they strike. If your safe is visible through a window or left with the door open in a way that signals "there's something worth taking here," the anchor helps — but concealment helps just as much. A safe inside a wardrobe, with clothing in front of it, is statistically less likely to be targeted than a safe sitting in plain view of the door. Bolt it down and hide it. Both steps cost nothing extra once you own the safe.
