How to Install a Wall Safe at Home (2026 Guide)
Step-by-step guide to installing a wall safe in 2026 — stud finding, anchor bolts, cavity depth, and the mistakes that let intruders pull safes out whole.
Installing a wall safe wrong is worse than not having one at all — a poorly mounted unit gives you false confidence while an intruder pulls it straight out of the plasterboard in under two minutes. This guide walks through the exact steps for installing a wall safe at home in 2026, from finding a stud to bolting into masonry.
TL;DR
A wall safe needs to be bolted through its back panel into a wall stud or masonry, not just screwed into plasterboard — plasterboard alone holds roughly 20-30kg before it tears out. Verdict: install into studs or brick, never drywall alone. Budget half a day for a first attempt, including locating studs, drilling anchor points, and running a test lock cycle. The Guardall HV1 Home Safe and the Secuguard SHS2K Home Safe are both sized and drilled for standard wall-cavity mounting, which makes them a sound starting point if you're buying before you install. Skip any safe under 20kg unless it's rated specifically for wall-cavity fixing — weight alone is not security once it's hanging in a stud bay.
Why this matters
A safe bolted to a stud or into brick behind three coats of render is a different proposition to one sitting loose on a shelf. Thieves working a residential burglary average under eight minutes inside a property, and a safe that can be levered out in seconds gets carried off whole and opened later at leisure. Correct installation is what turns a steel box into an actual security device.
Most wall safes sold in Australia in 2026 are designed to sit between wall studs, spaced at 450mm or 600mm centres depending on the build. Get the stud spacing wrong and you'll either need a mounting plate or a different cavity location altogether — better to know this before you cut a hole. The Wall Safes for Home and Office Installation guide covers sizing and placement in more depth if you haven't picked a model yet.
What you'll need
- Stud finder (electronic, not magnetic-only)
- Cordless drill with masonry and wood bits matched to your anchor bolts
- Spirit level
- Tape measure and pencil
- Anchor bolts or coach screws rated for at least 150kg shear load (check the safe's fixing instructions — most ship with the correct hardware)
- Safety glasses and a dust mask if drilling into masonry
- A helper to hold the safe in place while you mark and drill
- The wall safe itself, ideally one rated for wall-cavity fixing such as the Guardall HV1 Home Safe or the Secuguard SHS2K Home Safe
The steps
1. Confirm the safe suits wall-cavity installation
Not every home safe is designed to sit inside a wall — some are floor-standing units meant to be bolted to a concrete slab instead. Check the product spec for cavity depth and fixing points before you start cutting. Getting this wrong means either an oversized hole or a safe that protrudes too far from the wall face to hang a picture over it.
Common mistake: buying based on external dimensions alone and discovering the door swing needs 50-80mm of clearance you hadn't accounted for.
2. Locate studs and mark the cavity
Run the stud finder across the target section of wall and mark both edges of at least two adjacent studs — most wall safes need a minimum 400mm span to sit securely. Use the spirit level to draw a level rectangle matching the safe's outer case dimensions, adding 10-15mm clearance on each side for the mounting frame.
Double-check with a small pilot hole before committing to the full cutout. If you hit wiring or plumbing, stop and reposition rather than working around it.
Common mistake: trusting a magnetic stud finder near old nail heads — it'll give false positives and put your cutout in the wrong spot.
3. Cut the cavity
For plasterboard walls, score the outline with a utility knife then cut with a drywall saw, working slowly near the edges to avoid tearing the paper facing. For masonry, this step usually means engaging a professional with a core drill or angle grinder — DIY masonry cutting for a wall safe cavity is where most installation attempts fail.
Vacuum out dust and debris before test-fitting the safe body. It should sit flush with 5-10mm to spare on all sides, not jammed in.
Common mistake: cutting to the exact outer dimension with zero clearance, then fighting to get the safe in and out during fitting.

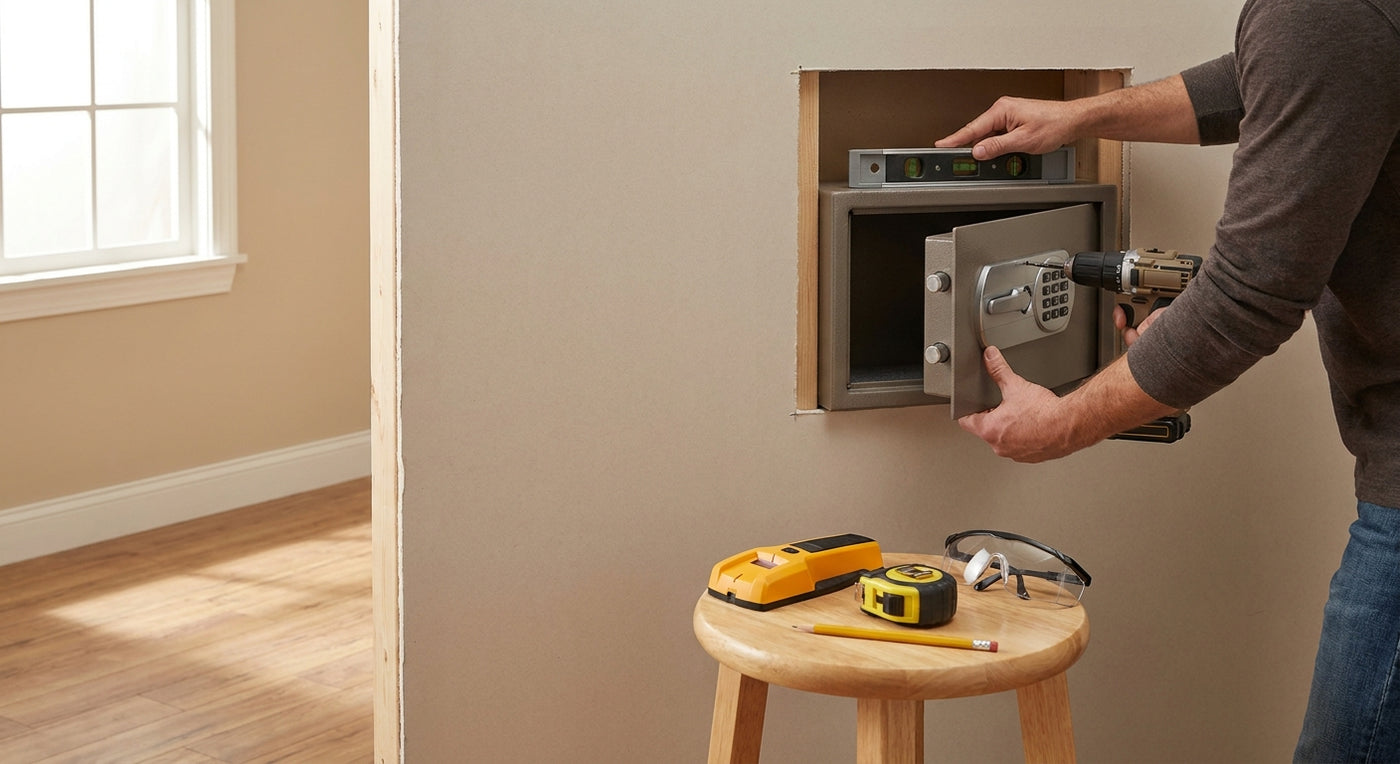

4. Test-fit and level the safe
Slide the safe into the cavity without fixing anything yet. Check it sits flush against the wall face and use the spirit level across the top and side to confirm it's square — an out-of-level safe puts uneven strain on the door hinge over time and can cause the bolt-work to bind.
Mark the fixing points through the safe's pre-drilled mounting holes onto the studs or masonry behind.
Common mistake: eyeballing level instead of using a tool — a few millimetres out at installation becomes a jammed door in 2026 when the frame has settled.
5. Drill and fit anchor points
Remove the safe, drill pilot holes at your marked points into the studs (or masonry anchors for brick/concrete), then re-position the safe and drive the coach screws or bolts through the mounting holes into the studs. Tighten to snug plus a quarter turn — over-tightening timber fixings can strip the thread.
For masonry walls, use expansion anchors rated for at least 150kg shear load per point, with a minimum of four fixing points across the back panel.
Common mistake: using only two fixing points because "it feels solid" — four points spreads load and resists prying far better than two.
6. Fit trim, finish, and conceal
Once bolted, fit any surrounding trim or frame kit supplied with the safe to close the gap between the safe body and the wall cutout. If concealment matters to you, a picture frame or removable panel hung over the safe adds a layer of obscurity, though it should never be the only security measure.
Run a final check that the door opens and closes cleanly against the frame with no rubbing.
Common mistake: painting or wallpapering right up to the safe edge before confirming the door swings freely — paint buildup in the hinge gap is a common callback issue.
7. Test the lock and log the combination or key
Cycle the lock mechanism five to ten times before you rely on it, whether it's a key, dial, or electronic lock. For electronic locks, change the default code immediately and store the master reset code somewhere outside the safe itself — obviously.
Record your combination or duplicate key location with a trusted person or in a separate secure location, not taped inside a kitchen drawer.
Common mistake: closing the door before confirming the lock engages fully — a half-latched safe defeats the entire point of the installation.
Troubleshooting
- The safe won't sit flush against the wall — usually a cavity cut slightly too shallow; pack out with 3-6mm timber packers rather than forcing the fit.
- Door rubs on the frame after fitting trim — trim was fitted too tight to the door edge; loosen and re-space by 2-3mm.
- Anchor bolts spin without tightening — masonry anchor wasn't seated deep enough; remove, clean the hole, and reinsert with a fresh anchor.
- Safe feels loose after a few months — timber fixings can loosen as studs dry out seasonally; re-torque all fixing points annually.
- Electronic lock unresponsive after fitting — check battery orientation and connections weren't disturbed during installation; most units ship with a battery compartment accessible without opening the main door.
- Can't find two studs at the right spacing — use a horizontal mounting plate rated for the safe's weight rather than forcing an off-spec cavity.
Tools and resources
Beyond the drill and anchors, keep the safe's installation manual on hand throughout — torque specs and fixing-point counts vary by model. If you're bolting a floor-standing unit instead of a true wall-cavity safe, the process differs; the How to Bolt Down a Home Safe guide covers slab and floor fixing specifically. For sizing guidance before you buy, Security Safes stocks wall-mountable options across several capacities, including the compact Guardall HV1 and the mid-size Secuguard SHS2K.
What to do next
Once your wall safe is installed and tested, review what you're actually storing in it — jewellery, documents, and firearms all have different humidity and fire-rating needs that affect where in the house you should have positioned it in the first place. If you're still deciding on a model, compare compact options in the Best Small Safes for Home Security guide before committing to a cavity cutout.
FAQ
What's the best way to install a wall safe without hitting wiring? Run a cable and pipe detector alongside your stud finder before cutting, and drill a small pilot hole first to confirm the cavity is clear. This single step avoids the most expensive mistake in wall safe installation.
Is a wall safe better than a floor safe? A wall safe is easier to conceal behind furniture or artwork, while a floor safe bolted to a concrete slab generally resists prying better. Choice depends on your wall construction and what you're storing — heavier gun safes usually suit floor mounting instead.
How much does it cost to install a wall safe in Australia? DIY installation costs are mostly hardware — anchor bolts and a stud finder if you don't already own one — while professional installation for masonry cutting typically runs as a trade call-out fee on top of that. Get quotes locally since masonry work varies significantly by region.
Can I install a wall safe in plasterboard alone? No — plasterboard alone tears out under roughly 20-30kg of lateral force, well below what a determined intruder can apply. Always fix into studs, a mounting plate, or masonry behind the plasterboard layer.
How deep does a wall need to be for a wall safe? Most home wall safes need a cavity depth of 150-200mm to sit inside a standard timber-framed wall without protruding. Check the exact depth on the product spec before cutting, since deeper commercial units may need a false wall built out.
Do I need a professional to install a wall safe? Timber-framed walls are manageable as a DIY project with basic tools, but masonry or brick cavities generally need a professional with core-drilling equipment. Attempting masonry cutting without the right gear is the most common reason installations fail or damage the wall.
How many fixing points does a wall safe need? Four fixing points across the back panel is the minimum for secure installation, spreading load evenly and resisting prying from any single corner. Two-point fixing is common in DIY attempts but offers noticeably less resistance to forced removal.
What happens if I don't bolt the safe down at all? An unsecured safe, no matter how heavy the steel, can simply be carried out of the house by two people — this is one of the most common ways safes are stolen whole. Bolting into structure is what separates a security device from an expensive lockbox.
One last thing
The detail most people skip: re-torquing the fixing bolts twelve months after installation. Timber studs shrink slightly as they dry out over a first year in a conditioned home, and a safe that was rock-solid on installation day can develop a few millimetres of play by the following winter. A five-minute annual check with a socket wrench is cheaper than finding out the hard way.
